Description

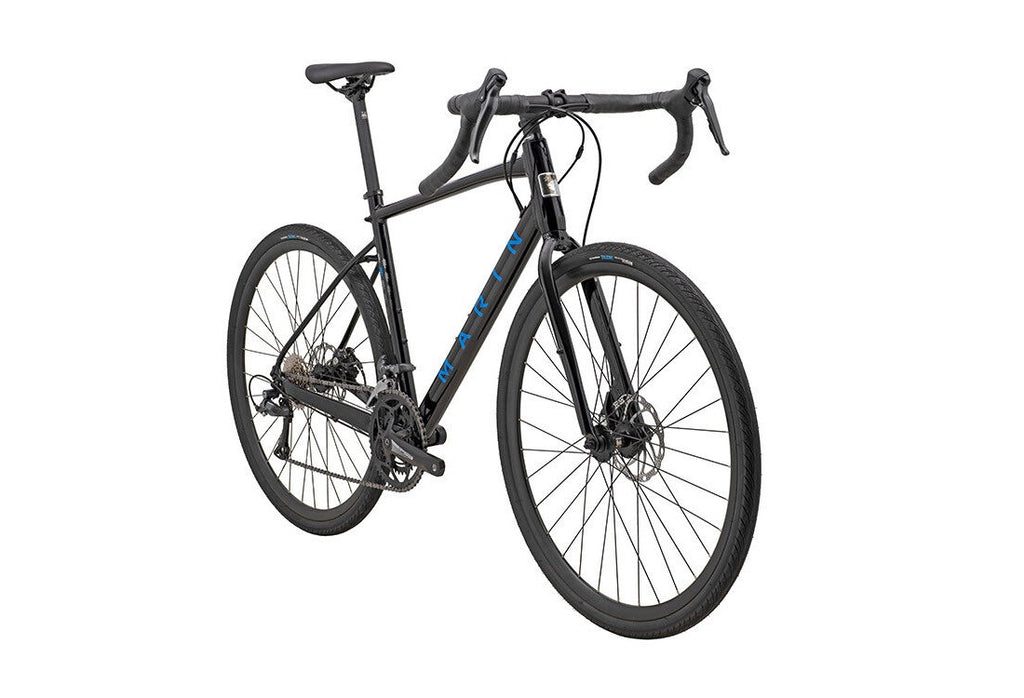

gravel bike marin gestalt Marin Bikes Gestalt Base Road Bike 2023, Alloy for Endurance, Gravel, AdventureAdventure Road Riding Long Distance Commuting Endurance and All Weather Pavement The Gestalt is for the drop bar rider that doesnt want to stick to pavement and cant help but get dirty no matter the route. Long distance commuters and all weather riders will appreciate the fender and rack mounts and the sure stopping disc brakes, and the larger volume tires are right at home on that unexpected detour. The Gestalt series takes you Beyond Road. These
Adventure Road Riding-Long Distance Commuting-Endurance and All-Weather Pavement
The Gestalt is for the drop bar rider that doesn’t want to stick to pavement and can’t help but get dirty no matter the route. Long-distance commuters and all-weather riders will appreciate the fender and rack mounts and the sure-stopping disc brakes, and the larger-volume tires are right at home on that unexpected detour.
The Gestalt series takes you Beyond Road. These endurance models let you take any path you feel comfortable with, whether on the asphalt or up a gravel road, with a personal view. The lightweight butted aluminum Series 3 frames feature clearance for up to 35mm tires, wide-range drivetrains, fender eyelets, and powerful road-specific disc brakes to make any terrain and weather manageable. Unleash yourself on the areas you’ve been timid to take drop bars before, with the speed and confidence necessary to bring you Beyond Roads.
- Wheel Size: 700c
- Frame: Aluminum
- Size Range: 50, 52, 54, 56, 58, 60
| Size | Rider height range |
|---|---|
| 50cm | 152cm to 160cm |
| 52cm | 160cm to 168cm |
| 54cm | 168cm to 175cm |
| 56cm | 175cm to 183cm |
| 58cm | 183cm to 188cm |
| 60cm | 188cm to 193cm |
Additional Shipping Charges Apply:
This shipment originates from our distribution center in Bangalore, India. Any orders received out of Bangalore will attract a nominal shipping charge, to be decided after the order is placed and when the product is ready for dispatch - by checking the volumetric weight of the shipment box. Applicable shipping charges by the transporter will be communicated and to be paid before the dispatch.
Specifications
- Frame: Series 2 Beyond Road, 6061 Aluminum, 700C Wheels, Relieved Head Tube and BB, Internal Cable Routing, Disc Specific Forged Dropouts w/ Mudguard and Rack Mounts.
- Fork: 6061 Aluminum, Straight-Blade, Post-Mount Disc
- Rims: Marin Aluminum Double Wall, 19mm Inner, 25mm Tall, Disc Specific
- Hub, Rear: Forged Aluminum Alloy, 6-Bolt Disc, 32H
- Hub, Front: Forged Aluminum Alloy, 6-Bolt Disc, 32H
- Spoke, Nipples: 14g Black Stainless Steel
- Tires: Vee Tire Co., Zilent, 700x35
- Derailleur, Rear: Shimano Claris 8-Speed
- Derailleur, Front: Shimano Claris
- Shift Lever: Shimano Claris 2x8-Speed
- Crankset: FSA Tempo Compact, 50/34T
- Bottom Bracket: Sealed Bearing Square Taper
- Chain: KMC Z8
- Cassette: SunRace 8-Speed, 11-32T
- Brake, Front: Tektro MD-C40 Road Mechanical Disc, 160mm Rotor
- Brake, Rear: Promax Render R Road Mechanical Disc
- Brake Levers: Shimano w/ Integrated Shifters
- Handlebar: Marin Butted Alloy, Compact 12º Flared Drop
- Stem: Marin 3D Forged Alloy
- Grips: Marin Perforated Tape
- Headset: FSA No.8B
- Seatpost: Marin Alloy, 27.2mm
- Saddle: Marin Beyond Road Concept
- Pedals: Commute Platform
Technology
Series 2 or 3 Frame
The Gestalt features a butted and formed Series 2 6061 aluminum frame with internal routing, disc brakes, and rack and fender eyelets. Series 3 frames add thru-axles and a tapered headtube.
Beyond Road Geometry
Beyond Road Geometry offers a blend of endurance road handling with enhanced stability for off-pavement use.
Disc Brakes
Disc brakes provide smooth, controlled stopping in all conditions with minimal maintenance.
Tire Clearance
The Gestalt frame and fork have clearance for up to 700Cx35 tires.
Geometry & Size Guide
| 50 | 52 | 54 | 56 | 58 | 60 | |
|---|---|---|---|---|---|---|
| A Stack | 552 | 568 | 582 | 601 | 620 | 641 |
| B Reach | 367 | 372 | 377 | 387 | 402 | 404 |
| C Headtube Angle | 71° | 71.5° | 71.5° | 71.5° | 71.5° | 71.5° |
| D Headtube Length | 120 | 135 | 150 | 170 | 190 | 210 |
| E Seattube Angle | 74.5° | 74° | 73.5° | 73.5° | 73.5° | 73° |
| F Seattube Length | 460 | 480 | 500 | 520 | 540 | 560 |
| G Toptube Effective | 520 | 535 | 550 | 565 | 585 | 600 |
| H BB Height | 276 | 276 | 276 | 276 | 276 | 276 |
| I BB Drop | 78 | 78 | 78 | 78 | 78 | 78 |
| J Chainstay | 432 | 432 | 432 | 432 | 432 | 432 |
| K Wheelbase | 1008 | 1014 | 1024 | 1040 | 1060 | 1070 |
| L Standover Height | 714 | 732 | 755 | 775 | 794 | 814 |
| M Fork Offset | 50 | 50 | 50 | 50 | 50 | 50 |
| Seatpost Diameter | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
| Handlebar Width | 420 | 420 | 440 | 440 | 460 | 460 |
| Stem Length | 70 | 70 | 90 | 90 | 110 | 110 |
| Crank Length | 170 | 170 | 175 | 175 | 175 | 175 |
All lengths in millimeters
